Home > Products > Cut Resistant Sleeve > AWWA 214 standard for underground pipe anticorrosion tape

AWWA 214 standard for underground pipe anticorrosion tape

  • AWWA 214 standard for underground pipe anticorrosion tape
  • AWWA 214 standard for underground pipe anticorrosion tape
  • AWWA 214 standard for underground pipe anticorrosion tape
  • AWWA 214 standard for underground pipe anticorrosion tape

AWWA 214 standard for underground pipe anticorrosion tape

    Unit Price: 2.2~10.3 USD
    Payment Type: T/T,L/C,D/A,D/P,Western Union
    Terms of Trade: FOB
    Min. Order: 200
    Delivery Time: 7 Days
    Packaging: Packing in carton
    Productivity: 300 MTS/month
    Brand: XUNDA
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 50000MTS/year
    Certificate: ISO9001,SGS

Basic Info

Model No.: T300

Product Description

Xunda T300 pipe joint wrap tape specifical for steel oil gas and water pipes welding ,we deal with anticorrosion materials for more than 10 years ,we accept OEM,ODM

all product with SGS test report ,reach to ASTM D 1000 standard


1 System description:


The XUNDAT300 series is Cold applied tape coating system for anti corrosion of field joints, fittings, and specifically piping. The adhesive is a key in ground performance characteristic coupled with the low and high density polyethylene backing.


The Joint wrap tape shall be applied by hand or with a wrapping machine.

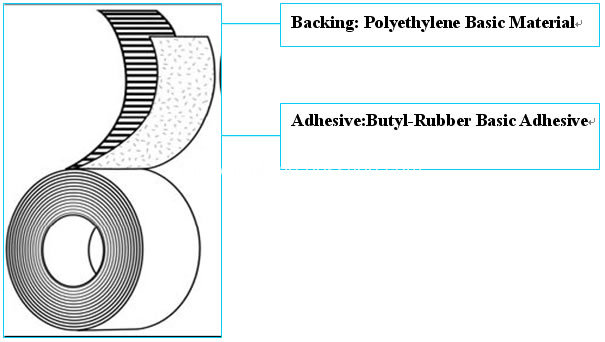

2 Structure:

Backing: stabilized polyethylene
Adhesive: butyl rubber compound and adhesive synthetic resins
Interleaf: Anti Adhesive Silicone film

3 Application:

· Provides a permanent bond to the primed steel pipes surface and provides protection against chemical electrolytic corrosion for underground pipelines.

· Because of flexibilities of hand apply tapes or joint wrap and inner wrap tapes, it is suitable for irregular pipe , flanges, elbows, and etc-. Long term, corrosion protection

· High flexible

· High chemical resistance under severe condition of soil.

· Complies with EN-DIN 12068 and AWWA C-214 international standards and also IGS and IPS Iranian standards.

· Wide range of application and service temperature.

· Outstanding electric property and permanent adhesion.\

· Specially fitted for wrapping pipe joints, girth weld, flanges, elbows, fittings and etc.

· A non stick siliconized interleaf in incorporated.


Note: Various wide, length and thickness are available unique project requirement

11


Item Name

underground tape Polyethylene tapes, pipe wrap polyethylene tapes,

Aluminum tape, polyethylene adhesive tape, butyl rubber adhesive tape

Size of Products

1roll/set ,200ft*150mm,100ft*100mm

Material

Butyl rubber Bituminous Compound and Adhesion Promoting Resins

Structure

2 layers without primer,PE + adhesive

Product Color

white, Black, yellow, grey

Packing

shrink wrap+2pcs color labels(color labels can print customer logo)

Package

4,6,12,24 sets/ carton

MOQ

500 roll

Samples Lead time

within 7 days

Payment Term

30% deposit, the balance against copy of shipping documents

Trading Term

FOBGUANGZHOU/FOBSHENZHEN/FOBSHANGHAI/CIT

Delivery Date

Within 10days after confirm your PO.

Country Of Original:

Shandong China

Usage:

It can be use on gas ,oil, water pipeline polyethylene,underground overhead

Excellent adhesion to inner-layer tape and self Resistant to UV

Provides long-term corrosion protection to steel pipelines.

Repair of damaged factory applied corrosion protection.

Outlining weld beads and cut backs prior to wrapping bare-welded joints.

Outlining seams on spiral and seam welded pipe.

Primerless mastic tape readily conformable to odd-shaped pipe fittings, valves, flanges and other buried structures.

Recommended Temperatures

Application Temperature: from +5ºC to +50ºC
Continuous Temperature: from –30ºC to +60ºC
Peak Temperature: up to +70ºC

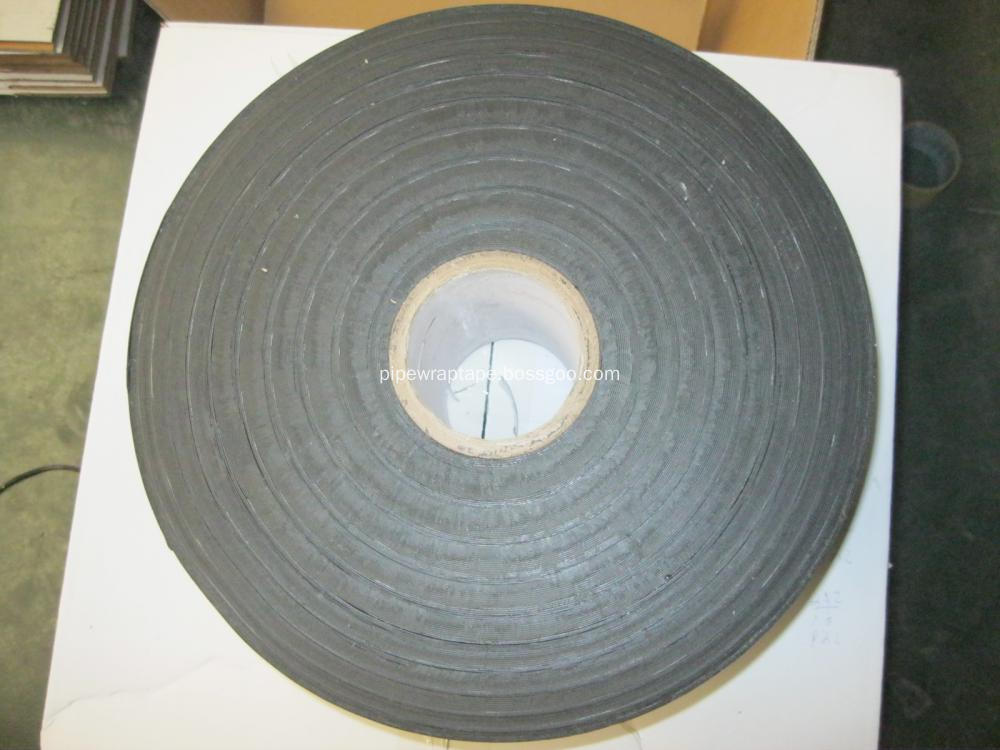

IMG_1520

1




TRADE TERMS:

1 Payment: 30% T/T DEPOSIT PAYMENT IN ADVANCE, BALANCE AGAINST COPY OF B/L, WESTERN UNION, ESCROW, L/C.

2 Production Lead Time: 10 - 15 DAYS AFTER DEPOSIT PAYMENT.

3 Shipping Methods: OCEAN FREIGHT / AIR FLIGHT /COURIER PRESS

4 FOB Shipping port:QINGDAO, SHANGHAI ,OTHER PORTS, MAINLAND CHINA.

5 If you want to deal with EXW/CIF/CNF term instead of FOB, please specify. Otherwise, FOB price will be quoted under inquiry.

OUR SERVICE:

· Your inquiry related to our product & price will be replied within 24hours.

· Well-trained & experienced staffs are to answer all your inquiries in English of course.

· Working time: 8:30am - 6:00pm, Monday to Saturday (UTC+8).

· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.

· Your business relationship with us will be confidential to any third party.

· Good after-sale service offered, please get back if you got question.

gas-pipeline-wrap-tape-xunda



Xunda anticorrosion tape advantage :


A. Use polyethylene and butyl rubber as main materials, excellent insulation resistance and Iow water absorptivity.

B .Wide range of operation temperature from-30 °C to 90 °C

C. Xunda tape anti-corrosion system is a multi-layer system which is composed of inner anti-corrosion tape and outer protective tape resistant to outside Mechanic impact. With high anti-corrosion performance and impact resistance.

D. With a long life of over 30years.

E. Widely used on pipes whose sleeve diameters are from 50mm to 1800mm. Convenient construction, safe and clean operation, suitable to factory production and field

F Conformable to irregular shapes.

G No release liner.

H Complies with AWWA (American Water Works Association) C-214 standard.

I Compatible with general coating systems


20150330101732







Jining Xunda Pipe Coating Materials Co.,Ltd , the manufacturer of the manufacturer corrosion prevention coating materials construction waterproof and sealing coating materials.

A joint-stock enterprise, possessing a gross investment of RMB 42 million, registered capital of RMB 20 million.

Our services : underground, underwater and aboveground oil , gas , water and petrochemical pipelines transport system corrosion and mechanical protection.Construction building roof , bathroom ,kitchen waterproof.bridge concrete waterproof and sealing.Pipeline insulation and UV resistance.shipbuilding and oil,water tanks waterproof and corrosion prevention.

Our advantage: we have the advanced production technology, Scientific management method, First-class R & D team, Perfect after sales service system . We have passed the SGS , DVGW, AWWA test and ISO9001, ISO14001, ISO18001,Bureau Veritas certification. We are the Audited Suppliers of SINOPEC, CNOOC,CNPC. We are also one of the largest pipeline anti-corrosion tape manufacturer in China since 2014.

Our major market including more than 70 countries, widely distributed in South Asia, Southeast Asia, Central Asia, West Asia, the Middle East, Africa, Europe, Eastern Europe, South America, Australia.

Philosophy:

Your needs , our pursuit .

Mission and Vision :

Xunda will continue to develop corrosion prevention, waterproof and sealing solutions for the protection of client's valuable infrastructural assets around the world, ensuring our clients derive maximum benefit from our solutions. fulfilling all market requirements for a performance guarantee against corrosion , whilst ensuring respect for the environment and applicator.

Pursuing world leadership for innovative, cost-effective, and environmentally corrosion prevention , waterproof and sealing solution.
